Kenmerken

Specificaties

Condition: New

Type: Resistance Furnace

Usage: Heat Treatment Furnace

Voltage: â‰¥220

Dimension(L*W*H): 660 x540 x730mm

Warranty: 1

After-sales Service Provided: Engineers available to service machinery overseas

Power: â‰¥2kw

Weight: 150kg

Certificering: CE

Product Name: CE Approved Atmosphere Furnace Inert Gas Argon Atmosphere Furnace

Application: Annealing, preheating, melting, heat treatment, sintering

Max temperature: 1700c

Gas inlet: Nitrogen,Argon atmosphere, inert gas, protective atmosphere

Heating element: Mosi2 rods

Furnace Structure: Double shell with fan cooling

Temperature control: 30 Segments Programmable

Chamber Size: 200*150*150 mm

Thermocouple: B type

Basis informatie

Certificering: CE

Betalen & Verzenden Algemene voorwaarden

Packaging Details: Plastic paper inside polyfoam filled wooden box outside

Supply Ability: 500 Set/Sets per Month

Productomschrijving

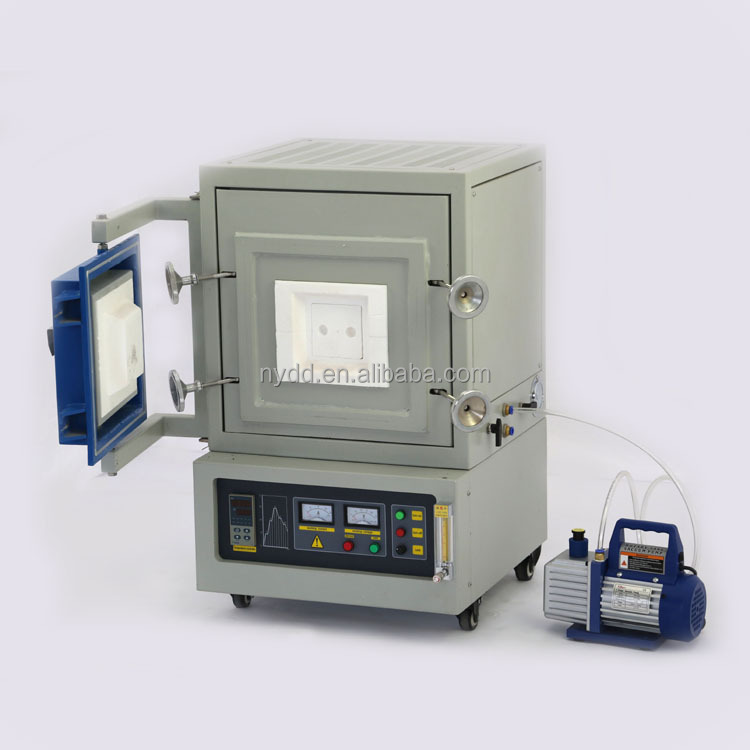

CE Approved Atmosphere Furnace Inert Gas Argon Atmosphere Furnace Nitrogen Atmosphere Furnace

Brief introduction

SA2-4-17TP box atmosphere furnace with silicon molybdenum rods as heating element, using double shell structure and intelligent temperature control system of thyristor control, phase shift trigger, furnace using 1700 type of polycrystal alumina fibre materials imported from Japan, double layer between the furnace shell is equipped with air cooling system, can quickly rises to cool, USES the soft start of constant flow control, extend the service life of heating element. Balanced &energy-saving temperature control precision, temperature field, simple operation, quick elevating temperature rate, low energy consumption advantages.

Main use: colleges and universities, research institutes, industrial and mining enterprises do roasting, ceramic sintering, high temperature test, quality test.

Detailed parameters

Product model	SA2-2-17TP	SA2-4-17TP	SA2-9-17TP
Working voltage and frequency	AC220V 50/60HZ	AC220V 50/60HZ	AC380V 50/60HZ
Furnace internal size (deep X width X height)	100x100x100mm	200 x150 x150mm	300x200x200mm
Rated power	≤2kw	≤4kw	≤9kw
Outside dimensions	660 x540 x730mm	660x540x790mm	775x670x945mm
Weight	30kg	80kg	100 kg
Heating rate	10℃/min	10℃/min	10℃/min
Product features	Cool can rise quickly, furnace temperature field is balanced. Stable temperature control, simple operation, low energy consumption
Heating element	Silicon Molybdenum Rod
Commonly used temperature	≤1650℃
The highest temperature	1700℃
Temperature control type	30 period of intelligent process control
Constant temperature precision	±1℃
Temperature control table	708P intelligent temperature controller
The furnace shell	Double air cooling structure
Furnace chamber	Type 1700 imported polycrystalline alumina fiber furnace, reasonable design, durable, heat preservation performance is good, saving energy
Temperature measuring element	B Type double platinum rhodium thermocouple
Furnace door structure	side-open
Main assembly	High temperature gloves, the crucible tongs, thermocouple, corundum crucible, brick block
Regular furnace size	100x100x100mm 200x150x150mm 300x200x200mm 400x300x300mm

The above data is for reference only, the chamber size can be customized according to customer requirements, the dimensions are subject to change without prior notice! Regular furnace size

Related furnaces

mini muffle furnace	1200c muffle furnace	1200c tube furnace


Economy muffle furnace	dental muffle furnace	Vacuum furnace

Crucible furnace	Atmosphere furnace	Car Bottom Furnace

Packaging & Shipping

How to make an order

Company Information

Nanyang Dadi Electric Equipment Co., Ltd is a professional Heat treatment furnace manufacturer with more than 10 years experiences.

Mainly Electric furnaces including :

Muffle furnace	Atmosphere furnace	Tube furnace
Dental sintering furnace	Vacuum furnace	Crucible furnace
Bottom loading furnace	Car bottom furnace	Etc.

FAQ

1. Q: Are you electric furnace manufacturer?

A: Yes, we are professional electric furnace manufacturer in China more than 10 years.

2. Q:What kind terms of payment can be accepted?

A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc

3. Q: Can I ask for customized furnace?

A: Yes, customized furnace is accepted.

4. Q: What about the delivery time?

A: Within 15 days after receiving your payment or based on order quantity and production schedule.

5. Q: What about the guarantee period?

A: The guarantee period is 12 months.

6. Q: What about the Minimum Order Quantity?

A: The MOQ is 1 pcs.
