Name: COATING JIACHENG 40 Heads Copper Wire Annealing Furnace With Tin Plating
Brand: COATING JIACHENG 40 Heads Copper Wire Annealing Furnace With Tin Plating
SKU: JCJX40H/4.5 40H/6 40H/7.5
Price: 1 USD
Availability: InStock
Rating: 4.9 (187 reviews)

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Model Number: JCJX40H/4.5 40H/6 40H/7.5

Usage: COATING, annealing and tin-coating

NO.of wire: 32,40

Max.speed(m/min): 300

Tinning Type: Hot coating

operation mode: fully automatic

condition: new

wire NO: Multiple wires

price: reasonable

voltage: 380V 50/60HZ

Basis informatie

Model Number: JCJX40H/4.5 40H/6 40H/7.5

Betalen & Verzenden Algemene voorwaarden

Packaging Details: JIACHENG 40 heads Copper wire annealing furnace with tinning The normal packages is wooden box. If export to Europ Country,the wooden box will be after fumigated. If enter container the packages is too tighter,we may use PE film to wrapping the machine. o

Supply Ability: 100 Set/Sets per Year JIACHENG 40 heads Copper wire annealing furnace with tinning

Productomschrijving

Company Information

we established in 1990.We are the professional manufacturer have more than 20 years of experience in making all kinds of wire and cable machinery,realize the wire from drawing to extruding.
we are the factory not the trade company,Machine’s body and other key components and parts are produced by our own factory, quality is reliable.,and we can control .the price;.the quality and .the delivery time;
Drawing wire as you want	Cu,Al,Al-alloy,S.S,etc.
We have	Single /multi wire drawing machine(2 wires, 4 wires,16 wires, 20 wires)
After drawing	We have annealing,stranding,extruding machine and cable auxiliary equipment(for example:wire winding machine,take up and pay-off machine,wire wrapping machine and so on)
our company address	near to shanghai: Juqiao Economic Development Zone, Tangqiao Town,Zhangjiagang City, Jiangsu Province, China.
to see more products	http://jcjx.en.alibaba.com

copper wire online annealing machine with hot dip tin plating machine

Main usage: to increase the amount of wire softening, conductive, tin

Technical parameter:

Machine type	JCJX-40H/4.5	JCJX-40H/6	JCJX-40H/7.5
No.of wire	40	40	40
Length of Annealing tank (m)	4.5m	6m	7m
Wire dia (mm)	0.08~0.32	0.1~0.65	0.1~0.7
Pressure regulator (kw)	0.75
Pay-off stand	Brush or overhead
Tinning type	Hot coating
Max speed (m/min)	300m/min
Pay-off bobbin size (mm)	φ300mm
Take-up bobbin size	5’’~8’’	5’’~10’’	5’’~10’’

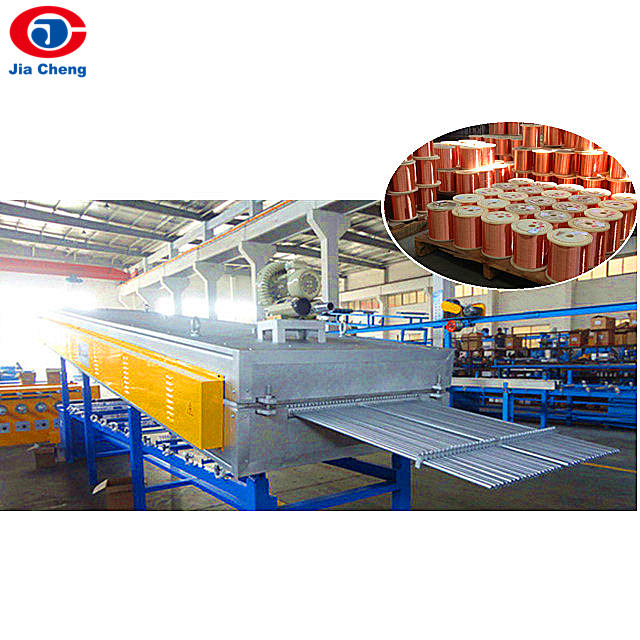

Production site for the copper wire annealing furance:

copper wire tinning

Main feature :

1) Dual tinning tank design
2) Can produce 2 kinds of tin-coated copper wires
3) Spooler arranged in double layers, saves space

The competitive advantage:

1. our industry has more than 12 years experience in wire and cable machinery and equipment manufacturing.

2. 40 head of high speed pipe type annealing furnace, 50cm thickening, four-side reflecting, uniform heating, thermal

insulation and energy saving, has been granted the national patent.

3.40 high-speed take-up machine, it has high work efficiency, suitable for users who need great production.

Packaging & Shipping

FAQ

A:I just get into this industry, I don't know how to plan?

Q : Every salesman of us can tell you how to plan the workshop ,how to install the equipment,how to save the costs and so on.

A: How can i install my machine when it arrives?

Q: We will send our engineers to your factory to install the machines and train your staff how to operate the machines

A:How about the spare part?

Q: We can offer you a spare parts list for your reference.

A : Which industries are mainly targeted at JIACHENG's equipment?

Q : Wire and cable, enameled wire, electron beam, cutting line, magnetic wire,and S.S.wire etc.

why choose us?
