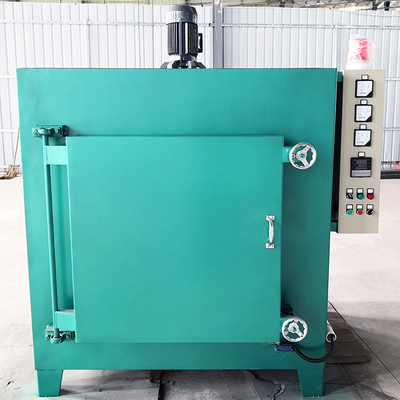

Electric heat treatment box tempering furnace for spring
This series box type resistance cycle furnace is mainly used for steel parts, mould and measuring tools and other hardware products of tempering (or aging)and other heat treatment.
Structure Introduction
Main consists of furnace body, door, stirring fan, heating element, ventilation device and temperature control cabinet.
Characteristics
Feature: siliceous alumina fiber cotton is pressed on insulating layer and furnace bottom and the whole set of device has no refractory brick. It features fast temperature rise and excellent heat preservation.
Model | Rated Power (kw) | Rated Voltage (V) | Rated Temperature (℃) | Phases | Hearth Size (mm) |
RX2-15-6 | 15 | 380 | 650 | 3 | 600*500*500 |
RX2-20-6 | 20 | 380 | 650 | 3 | 700*600*500 |
RX2-25-6 | 25 | 380 | 650 | 3 | 800*600*600 |
RX2-30-6 | 30 | 380 | 650 | 3 | 800*800*800 |
RX2-30-6 | 30 | 380 | 650 | 3 | 1000*700*600 |
RX2-45-6 | 30 | 380 | 650 | 3 | 1200*800*800 |
Foshan Huichengsheng was founded in 1999 in Foshan , Guang dong Province of China , Covering more than 2000 M2 and very closed to Guangzhou city. We are a professional manufacture of electric resistance heat treatment furnace , widely be used for metal heat treatment industry, such as, heating, annealing, brazing, carburizing, hardening and tempering, forging, sintering and so on .
We are professional manufacturer of electric resistance heat treatment furnace with 20 years experiences for producing furnace. Not only have rice experience to produce high quality machine , but also with strong technical team as basis.
Our company has passed ISO9001 international management system certification and European CE certificate.
Strong technical research and development team, sales and after-sales service team.Answer heat treatment questions 24hours online professionally and in timely .
Up till now, we have been exported to more than 45 countries and regions all over the world. Such as , America, France, Finland, Hungary, Spain, Turkey, Iran, Pakistan, Tajikistan, Uzbekistan, Yemen, Oman, Thailand, Malaysia, Vietnam, Indonesia, Brazil, South Africa, Ethiopia, Algeria, etc.
1.All our furnace have one year warranty. In case of any failure occurred in the warranty period, damaged parts to be replaced shall be offered free of charge.
2.We have professional sales and engineer, experienced worker to service you during the whole purchasing trip.
3.Help buyer installation the equipment and free training operator. We provide lifelong tracing service, supply equipment parts and relevant maintenance of favorable prices, and give user technical guidance free of charge.
